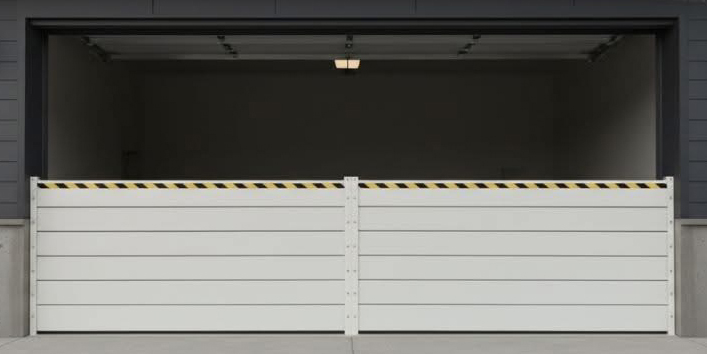

Dam Easy® Titan Flood Barrier
The Titan is an advanced modular flood barrier system designed to protect residential, commercial, and critical infrastructure properties.
SIMPLE - EFFECTIVE - ESSENTIAL
The Titan Flood Barrier Design is Amazing
- Product consists of a center piece and two wings.
- Wings slide in/out of center piece for adjustable width by use of internal ratchet handle.
- Patented, inflatable rubber tube seals around the frame.
- Seal is inflated by an internal air pump that is manually operated.
- Internal pressure gauge tells you when to stop inflating your sea.
Materials & Composition
- Main Frame & Panels - 6063-T5 Architectural Aluminium Alloy - anodised, electrophoretic surface treated
- Secondary Fittings -304 Stainless Steel (fasteners, brackets, supports
- Sealing System - EPDM Rubber Strips (moulded, watertightt sealing)
- Side Covers - Polypropylene (PP)
- Finish -Powder-coated 'Cream'with DamEasy Titan identity
Key Features
- Quick assembly and disassembly (1-2 operators, -15 minutes).
- Push-down and side-pressure locking mechanism for watertight seal
- Stackable modular system for easy storage and transport
- Each module provides -200 mm (8 inches) of flood protection height
- Available in custom widths to fit any doorway or opening
- Openings >4.0 m require central LQJ support posts or triangular bracing
- Certified against National Architectural Standard 17J610-2
Technical Dimensions
- Series - 35 Series
- Beam Dimensions - 8.54" x 1.38"
- Thickness -0.08"
- Seal Sizes - Bottom: 1.61" x 1.42" Middle: 0.51" x 0.47"
Performance
- (^ Proven watertight sealing with EPDM compression system.
- Q Durable construction for long-term seasonal reuse.
- © Powder-coated finish enhances corrosion resistance and appearance
- ® Meets international flood protection and disaster prevention standards
- Main Frame & Panels - 6063-T5 Architectural Aluminium Alloy - anodised, electrophoretic surface treated
- Secondary Fittings -304 Stainless Steel (fasteners, brackets, supports
- Sealing System - EPDM Rubber Strips (moulded, watertightt sealing)
- Side Covers - Polypropylene (PP)
- Finish -Powder-coated 'Cream'with DamEasy Titan identity
- Quick assembly and disassembly (1-2 operators, -15 minutes).
- Push-down and side-pressure locking mechanism for watertight seal
- Stackable modular system for easy storage and transport
- Each module provides -200 mm (8 inches) of flood protection height
- Available in custom widths to fit any doorway or opening
- Openings >4.0 m require central LQJ support posts or triangular bracing
- Certified against National Architectural Standard 17J610-2
Technical Dimensions
- Series - 35 Series
- Beam Dimensions - 8.54" x 1.38"
- Thickness -0.08"
- Seal Sizes - Bottom: 1.61" x 1.42" Middle: 0.51" x 0.47"
Performance
- (^ Proven watertight sealing with EPDM compression system.
- Q Durable construction for long-term seasonal reuse.
- © Powder-coated finish enhances corrosion resistance and appearance
- ® Meets international flood protection and disaster prevention standards
Key Features
